Take 5 Minutes

This weekend I had the pleasure of moderating Brandon Leach‘s session at Data Saturday Southwest. The topic was “A DBA’s Guide to the Proper Handling of Corruption”. There were some great takeaways and if you get a chance, I recommend you catch it the next time he presents it.

But there was one thing that stood out that he mentioned that I wanted to write about: taking 5 minutes in an emergency. The idea is that sometimes the best thing you can do in an emergency is take 5 minutes. Doing this can save a lot of time and effort down the road.

Now, obviously, there are times when you can’t take 5 minutes. If you’re in an airplane and you lose both engines on takeoff while departing La Guardia, you don’t have 5 minutes. If your office is on fire, I would not suggest taking 5 minutes before deciding to leave the building. But other than the immediate life-threatening emergencies, I’m a huge fan of taking 5 minutes. Or as I’ve put it, “make yourself a cup of tea.” (note I don’t drink tea!) Or have a cookie!

Years ago, when the web was young (and I was younger) I wrote sort of a first-aid quiz web-page. Nothing fancy or formal, just a bunch of questions with hyperlinks to the bottom. It was self-graded. I don’t recall the exact wording of one of the questions but it was something along the lines of “You’re hiking and someone stumbles and breaks their leg, how long should you wait before you run off to get help.” The answer was basically “after you make some tea.”

This came about after hearing a talk from Dr. Frank Hubbell, the founder of SOLO talk about an incident in the White Mountains of New Hampshire where the leader of a Boy Scout troop passed out during breakfast. Immediately two scouts started to run down the trail to get help. While doing so, one slipped and fell off a bridge and broke his leg. Turns out the leader simply had passed out from low blood sugar and once he woke up and had some breakfast was fine. The pour scout with the broken leg though wasn’t quite so fine. If they had waited 5 minutes, the outcome would have been different.

The above is an example of what some call “Go Fever”. Our adrenaline starts pumping and we feel like we have to do something. Sitting still can feel very unnatural. This can happen even when we know rationally it’s NOT an emergency. Years ago during a mock cave rescue training exercise, a student was so pumped up that he started to back up and ran his car into another student’s motorcycle. There was zero reason to rush, and yet he had let go fever hit him.

Taking the extra 5 minutes has a number of benefits. It gives you the opportunity to catch your breath and organize the thoughts in your head. It gives you time to collect more data. It also sometimes gives the situation itself time to resolve.

But, and Brandon touched upon this a bit, and I’ve talked about it in my own talk “Who’s Flying the Plane”, often for this, you need strong support from management. Management obviously wants problems fixed, as quickly as possible. This often means management puts pressure on us IT folks to jump into action. This can lead to bad outcomes. I once had a manager who told my team (without me realizing it at the time) to reboot a SQL Server because it was acting very slowly. This was while I was in the middle of remotely trying to diagnosis it. Not only did this not solve the problem, it made things worse because a rebooting server is exactly 100% not responsive, but even when it comes up, it has to load a lot of pages into cache and will have a slow response after reboot. And in this case, as I was pretty sure would happen, the reboot didn’t solve the problem (we were hitting a flaw in our code that was resulting in huge table scans). While non-fatal, taking an extra 5 minutes would have eliminated that outage and gotten us that much closer to solving the problem.

Brandon also gave a great example of a corrupted index and how easy it can be to solve. If your boss is pressuring you for a solution NOW and you don’t have the opportunity to take those 5 minutes, you might make a poor decision that leads to a larger issue.

My take away for today is three fold:

  1. Be prepared to take 5 minutes in an emergency
  2. Take 5 minutes today, to talk to your manager about taking 5 minutes in an emergency. Let them know NOW that you plan on taking those 5 minutes to calm down, regroup, maybe discuss with others what’s going on and THEN you will respond. This isn’t you being a slacker or ignoring the impact on the business, but you being proactive to ensure you don’t make a hasty decision that has a larger impact. It’s far easier to have this conversation today, than in the middle of a crisis.
  3. If you’re a manager, tell your reports, that you expect them to take 5 minutes in an emergency.

“Houston, we’re venting something into Space…”

This post is the result of several different thoughts running through my head combined with a couple of items I’ve seen on social media in the past few days. The first was a question posted to #SQLHelp on Twitter in regards to if a DBA came into a situation with a SQL Server in an unknown configuration what one would do. The second was a comment a friend made about how “it can’t get any worse” and several of us cheekily corrected him saying it can always get worse. And of course I’m still dealing with my server that died last week.

To the question of what to do with an unknown SQL Server, there were some good answers, but I chimed in saying my absolute first thing would be to make backups. Several folks had made good suggestions in regards to looking at system settings and possibly changing them, possibly re-indexing, etc. My point though was, all that could wait. If the server had been running up until now, while fixing those might be very helpful, the lack of fixing things would not make things worse. On the other hand, if there were no up to date backups and the server failed, the owner would be in a world of hurt. Now, for full disclosure, I was “one-upped” when someone pointed out that assuming they did have backups, what one really wanted to do was a restore. I had to agree. The truth is, no one needs backups, what they really need are restores. But the ultimate point is really the same, without a tested backup, your server can only get much worse if something goes wrong.

I’ve had to apply this thinking to my own dead server. Right now it’s running in a Frankenbeast mode on an old desktop with 2GB of RAM. Suffice to say, this is far from ideal. New hardware is on order, but in the meantime, most things work well enough.

I actually have a newer desktop in the house I could in theory move my server to. It would be a vast improvement over the current Frankenbeast; 8GB of RAM and a far faster CPU. But, I can’t. It doesn’t see the hard drive. Or more accurately, it won’t see an OS on it. After researching, I believe the reason comes down to a technical detail about how the hard drive is setup (namely the boot partition is what’s known as a MBR and it needs to be GPT). I’ll come back to this in a minute.

In the meantime, let’s take a little detour to mid April, 1970. NASA has launched two successful Lunar landings and the third, Apollo 13 is on its way to the Moon. They had survived their launch anomaly that came within a hair’s breadth of aborting their mission before they even made orbit. Hopes were high. Granted, Ken Mattingly was back in Houston, a bit disappointed he had been bumped from the flight due to his exposure to rubella. (The vaccine had just been released in 1969 and as such, he had never been vaccinated, and had not had it as a child. Vaccines work folks. Get vaccinated lest you lose your chance to fly to the Moon!)

Stack of Swiss cheese slices showing holes lined up.

A routine mission operation was to stir the oxygen tanks during the flight. Unfortunately, due to a Swiss Cheese effect of issues, this nearly proved disastrous when it caused a spark which caused an “explosion” which blew out the tank and ruptured a panel on the Service Module and did further damage. Very quickly the crew found themselves in a craft quickly losing oxygen but more importantly, losing electrical power. Contrary to what some might think, the loss of oxygen wasn’t an immediate concern in terms of breathing or astronaut health. But, without oxygen to run through the fuel cells, it meant there was no electricity. Without electricity, they would soon lose their radio communication to Earth, the onboard computer used for navigation and control of the spacecraft and their ability to fire the engines. Things were quickly getting worse.

I won’t continue to go into details, but through a lot of quick thinking as well as a lot of prior planning, the astronauts made it home safely. The movie Apollo 13, while a somewhat fictionalized account of the mission (for example James Lovell said the argument among the crew never happened, and Ken Mattingly wasn’t at KSC for the launch), it’s actually fairly accurate.

As you may be aware, part of the solution was to use the engine on the Lunar Module to change the trajectory of the combined spacecraft. This was a huge key in saving the mission.

But this leads to two questions that I’ve seen multiple times. The first is why they didn’t try to use the Service Module (SM) engine, since it was far more powerful and had far more fuel and they in theory could have turned around without having to loop around the Moon. This would have saved some days off the mission and gotten the astronauts home sooner.

NASA quickly rejected this idea for a variety of reasons, one was a fairly direct reason: there didn’t appear to be enough electrical power left in the CSM (Command/Service Module) stack to do so. The other though was somewhat indirect. They had no knowledge of the state of the SM engine. There was a fear that any attempt to use it would result in an explosion, destroying the SM and very likely the CM, or at the very least, damaging the heatshield on the CM and with a bad heatshield that would mean a dead crew. So, NASA decided to loop around the Moon using the LM descent engine, a longer, but far less risky maneuver.

Another question that has come up was why they didn’t eject the now dead and deadweight, SM. This would have meant less mass, and arguably been easier for the LM to handle. Again, the answer is because of the heatshield. NASA had no data on how the heatshield on the CM would hold up after being exposed to the cold of space for days and feared it could develop cracks. It had been designed to be protected by the SM on the flight to and from the Moon. So, it stayed.

The overriding argument here was “don’t risk making things worse.” Personally, my guess is given the way things were, firing the main engine on the SM probably would have worked. And exposing the heatshield to space probably would have been fine (since it was so overspecced to begin with). BUT, why take the risk when they had known safer options? Convenience is generally a poor argument against potentially catastrophic outcomes.

So, in theory, these days it’s trivial to upgrade a MBR disk to a GPT one. But, if something goes wrong, or that’s not really the root cause of my issues, I end up going from a crippled, but working server to a dead server I have to rebuild from scratch. Fortunately, I have options (including now a new disk so I can essentially mirror the one disk, have an exact copy and try the MBR->GPT solution on that one) but they may take another day or two to implement.

And in the same vein, if it’s a known SQL Server, or an unknown one, you’re working on, PLEASE make backups before you make changes, especially anything dramatic that risks data loss. (and I’ll add a side note, if you can, avoid restarting SQL Server when diagnosing issues, you lose a LOT of valuable information in the DMV tables.

So things CAN get worse. But that doesn’t mean there’s any need to take steps that will. Be cautious. Have a backout plan.

Broken Potshards

Another email from a customer: “Greg, I can’t invoice this client, it keeps coming up blank, why?”

I grab the most recent copy of their database, go through the steps and find out now only is she right, it’s worse than she described. If I pick a random client, the invoice appears correctly AND I can even rebill them. But if I pick the client in question, not only does their current invoice come up blank, when I go to rebill them, the resulting PDF not only shows the invoices for EVERY client, but shows EVERY invoice that client has ever had (fortunately this organization only bills once a year.)

This is a custom app that a local vendor had written for them years ago but has since gone out of business. My customer approached me about 3 years ago to fix a few bugs in their app and since they’ve become a small but reliable source of income. While they call the app “the database” the reality of course is that while there’s a SQL Server database backing the app, most of my work is done actually supporting the app in VB.Net.

I generally don’t consider myself a VB.Net programmer, despite having done a fair amount of work in it for this customer, for an app for the National Cave Rescue Commission (NCRC), and for a large multinational several years ago. I generally prefer DBA work. So why do I do it?

Because it’s fun and because it involves what I call software archeology. I liken my work for this customer and the work for the multinational to what an archeologist does when they find a bunch of potshards: they try to reassemble them and figure out what they were intended to do.

For this customer, often I’m actually not fixing code, I’m drilling into to the code and the database to determine “what did the original developer intend?” “What business assumptions were made in the original design specs?” This means sometimes the customer will email me and say something like, “Greg, when I try to add a member to this group, why does it not work?” And I dig through the code and realize it was never intended that you could add a specific individual to a group. What you do is say that client has the following positions on that that group and then within the client “this person fills this position.” In other words, the original business case as that as a client updated its own individuals, the memberships in groups would reflect that. It’s a fine way of approaching the problem and honestly, works well. Except the current main user of the program was approaching the issue from the opposite direction: a new client had signed up and wanted to have people in specific groups so she went to the groups and tried to add specific people.

So, there was nothing wrong with the code, nor was there anything wrong with the design, just a different approach. But it took me several hours of digging through the undocumented code to determine why she couldn’t do what she wanted and how to go about doing it.

So what’s the deal with the most recent case? Well, it’s not a bug per se, though I’ll probably fix some code to prevent the problem. The issue turns out that their clients are charged based on how many groups or committees they’re members of and if they’re domestic or international clients (and in some cases can be both). There’s code to calculate a discount if they’re an international client and a domestic client and how many committees they’re on. However, the code assumes that the discount only applies up to so many committee memberships. It’s not hardcoded, but more a result of some math that in this specific case instead of returning a discount (even a $0 one) was failing to return any discount because half-way through the SQL calculations it was returning a NULL and of course $discount = $numcomm1-$numcomm2 where one of those is NULL will result in $discount being NULL.

So, technically the code should handle this better, but it was obvious once the pot shards were put together that the original designers and design specs never envisioned this particular combination of memberships (and in fact I think in this case it’s a mistake since in previous years the client was only a domestic client, not both).

It was a fun little mystery and I think I’ve solved the current issue for my customer, but eventually we’ll need to think about how to approach this issue in case it happens again in the future.

Personally, I tend to enjoy these little mysteries of trying to figure out what the code is doing, but more importantly why. It can be insightful.

And now back to some PowerShell code for my largest client that actually involves some real database work.

The Value of Testing

This is one of those posts where I wish I could show actual code snippets, but since it involves a 3rd party vendor for one of my clients and I don’t have permission, I can’t.

So, I’m forced unfortunately to talk about the issue in a roundabout way.

My client uses a 3rd party tool to track documents. I’ve mentioned this before. They’ve been growing fairly fast and running into performance issues. I suppose growing fast is a good thing, but having performance issues is not.

In any case, using Query Store, I was able to send the vendor a list of queries and stats about them for them to review and to ideally improve the queries that needed work.

Yesterday they got back to me. The email was essentially we took this first query (let’s call it Doubly-Joined) and rewrote it as this second query (let’s call it Singly-Joined). I looked at the two queries, which join 4 tables. They’re very similar to each other, but the first one did join in the main table a second time (hence why I’m calling it Doubly-Joined). It’s not clear why this was done. The second query basically removed the second join and in the select clause, changed the aliases to the second join to the first join. This does give them a slightly different query plan, but ultimately, they return the same number of rows.

The first query plan
The second query plan

As you can see, the 2nd query plan is definitely a bit simpler (ignore the one warning, it’s not something that appears to be fixable here).

So, a naive take would be “we removed an unnecessary join, so of course it should be faster!” But is it?

Sometimes intuition can be correct, sometimes not so much. In this case though, it’s easy to confirm by seeing exactly how many rows are being read in each query.

I wrapped each query in a

Set Statistics IO ON/OFF
Set Statistics TIME ON/OFF

block and ran it. Here are the results

The Doubly-Joined

Table 'Table1'. Scan count 0, logical reads 337264, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Table2'. Scan count 0, logical reads 3, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Table3'. Scan count 0, logical reads 3, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Table4'. Scan count 1, logical reads 396, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

The Singly-joined

Table 'Table1'. Scan count 0, logical reads 337260, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Table2'. Scan count 0, logical reads 3, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Table3'. Scan count 0, logical reads 3, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Table4'. Scan count 1, logical reads 396, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

I’ve highlighted the relevant change. The single-joined query consistently performed with 4 fewer logical reads. Now, if the original number had been 8 and had dropped in half to 4, I’d be happy. But the change from 337264 to 337260 leaves me a bit underwhelmed. Furthermore, under multiple runs, the second query did not consistently use less CPU time, sometimes it took faster to run. Further testing was consistent in the lack of apparent improvement.

Needless to say, I don’t think this query improvement will help much. I’ve reached out to the vendor to see if they can provide more details, but honestly, I’m not hoping for much.

Query Store Saves the Day

It’s never a good thing when you get an impromptu meeting invite on the weekend and the subject line is “Sync Error”. I honestly didn’t even see the invite until the meeting had been going on for over an hour.

I called in and was brought up to speed. A 3rd party tool one of my client uses was having major timeout issues. Normally it’s fine, but my client was taking advantage of the weekend to do a very large import of data and the tool wasn’t keeping up.

I both love and hate being thrown into situations like this. I hate it because often I have very little information to go on, but also love it, because it can be a good challenge. So, I wanted to collect some data. Fortunately the database in question runs on SQL Server 2016. This blog post covers a bit of what we did and ends with why I am so grateful for Query Store.

Query Store and the First Graphs

I quickly enabled Query Store and grabbed a quick report. Based on help with the 3rd party support, I was able to focus on a particular query.

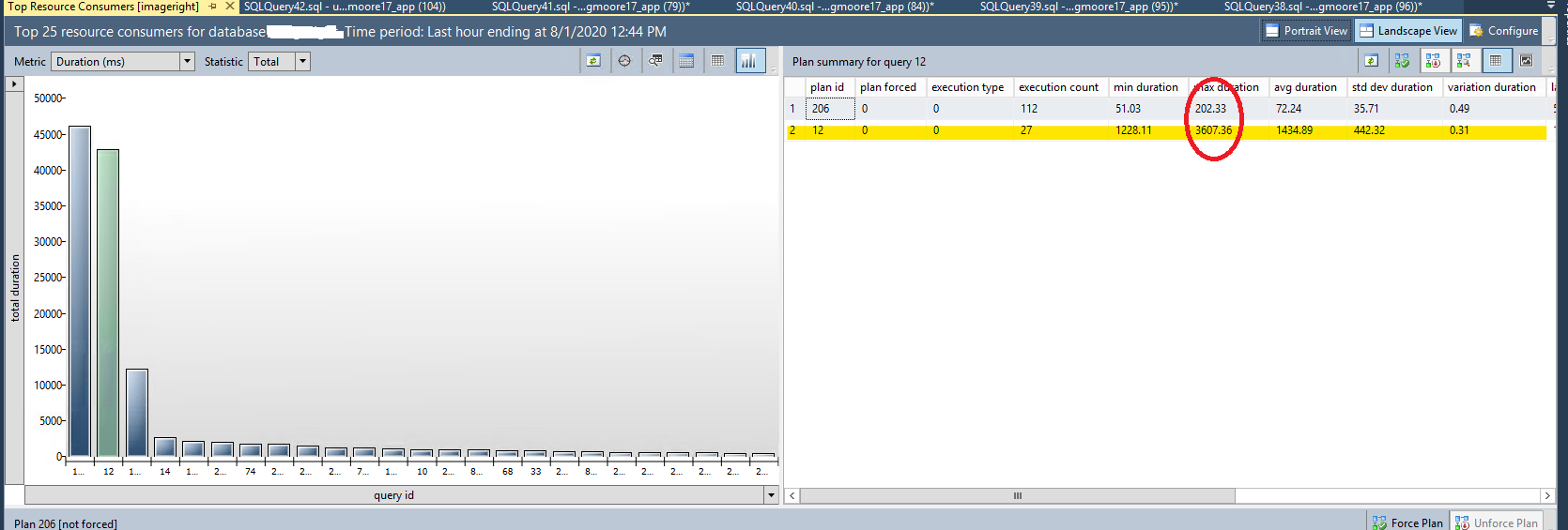

Query Store first graph

Initial Query Store screen grab

So, right away, I knew that at times this query could flip to a pretty bad query plan. I was curious as to why. But while poking around, I noticed something else going on. The database was at the SQL Server 2008 compatibility level, despite running on SQL Server 2016. Now I know when we upgraded the server a year ago the 3rd party vendor didn’t guarantee compatibility with 2016, so we had left it in its old compatibility level. Since then apparently the vendor had qualified it and I confirmed with their support who was on the line that I could change the compatibility level to SQL Server 2016. Of course, I wanted to see if this would make a difference, so I grabbed another one of the problematic queries and looked at the query plan both before and after.

Compatibility level 100

Query Plan at SQL Server 2008 Level

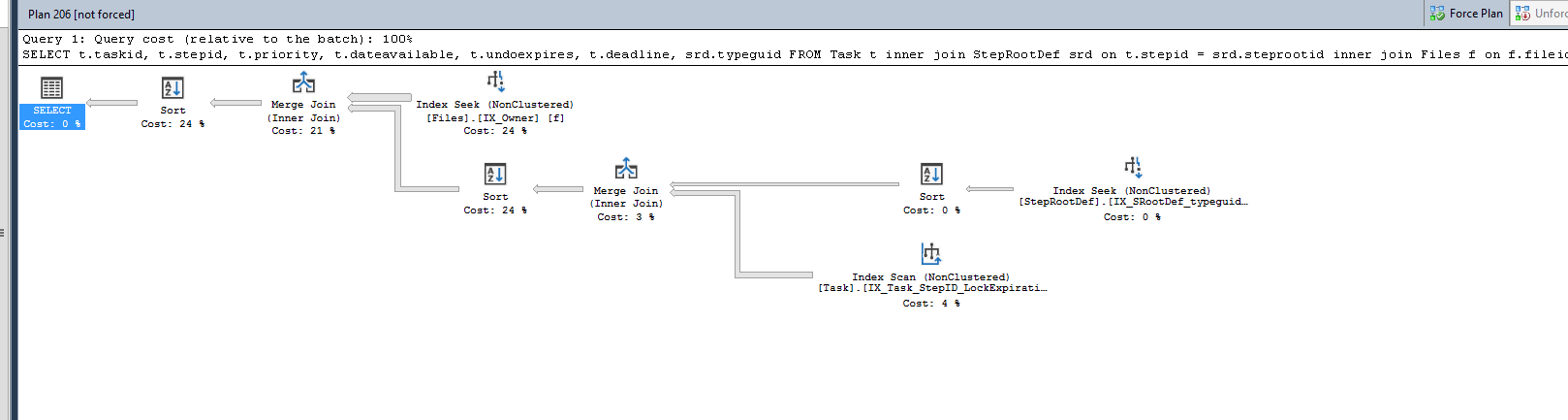

Compatibility level 130

Query Plan at SQL Server 2016 Level

As you’ll note, the 2008 plan uses 2 hash matches, the 2016 uses two merge joins. That’s interesting by itself, but after collecting a bit of data, I saw the 2016 plan was running in an average of 45ms. The 2008 plan had been averaging 1434ms. That’s quite the improvement, simply by a single change!

That said, I still wasn’t entirely comfortable with what was going on and dug a bit deeper.

Digging Deeper

The change to the compatibility level had essentially eliminated the green bar in the above graph. This was good. But the blue bar to the left of it was still an issue. It also had a similar issue with flipping between two different query plans, but this was even worse.

Query Store second graph

Better, but not that one query really stands out!

I find this particular chart to be the most useful. I set a custom time frame (in this case 3 hours) and looked at the total duration of 25 queries that had accumulated the most time running. It’s pretty clear that one query dominates and working on this is probably where I want to spend my efforts. It’s also very hard to pick out, but the query (#12) from the first graph that I had looked at, has improved so much that it’s now moved to 12th on the list from the 2nd position.  That’s quite an improvement and simply by changing the compatibility level! More on my thoughts on that below.

The more I thought about it, the more I started to focus on statistics. This was an educated guess based on the fact that my client was doing a LOT of inserts and updates into a particular table. There’s another issue I’ll also discuss. This one I couldn’t fix unfortunately, but if the 3rd party can, I think they’ll see a HUGE improvement in performance.

Slow query plan

Slow version of the query

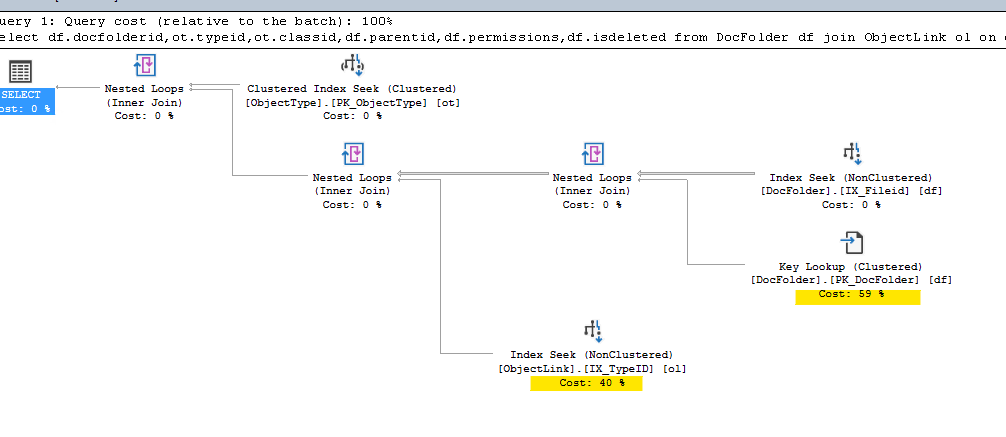

Fast version of the query

Fast version of the query

These look VERY similar, except the position of the Key lookups and the Index Seeks are swapped. That may not seem like much but the slow version was on average taking about 93.95 ms and the fast version was on average taking about .11ms. That’s a HUGE difference, about 850x difference! It took me a bit to realize what was going on, but let’s talk about that Key lookup. Even with the faster version, it’s obvious that if I can eliminate that, I could get things to be even faster!  The problem is that the query wants to return some columns not covered in the IX_FileID index. That’s generally easy to fix and while I’m loathe to make updates to 3rd party packages, I was willing to test this one out by making it a covering index. Unfortunately, this is where I was stymied. One of the columns is an IMAGE datatype and you can’t throw those into an index. I’ve recommended to the 3rd party vendor they try to change this. It wouldn’t be easy, but it could have dramatic performance improvements here and elsewhere (I had run into this problem last year while trying to tackle another performance issue).

I should note, that even though this query is actually very fast, it is executed so much that its total time dominates in the system. This is one reason why any improvement here would have a dramatic impact.

Statistics

In any case, looking at these two query plans and doing some further testing confirmed my hypothesis and also suggests why changing the compatibility level helped so much: statistics were very quickly getting out of whack.

I was able to confirm this by grabbing some data from the query store for just the last hour and it showed only the slow version of the query was running. I then forced an update of stats on the table in question and immediately saw the query flip over to the faster plan. This continued for awhile before it flipped back to the slower version.

We developed a plan, which I’ll admit upfront didn’t work. We decided that updating the stats on that particular table every hour might give us tremendous performance gains. And in fact it did initially. BUT, what we found was that after an hour of inserts, running the update stats for that table took about 45-60 seconds and the vendors tool has a hard-coded 30 second timeout. And because of the way this particular tool works, it means after a failure you have to start from scratch on every run. Since the job can take 4-6 hours to run, we couldn’t update stats every hour, even though I would have liked to.

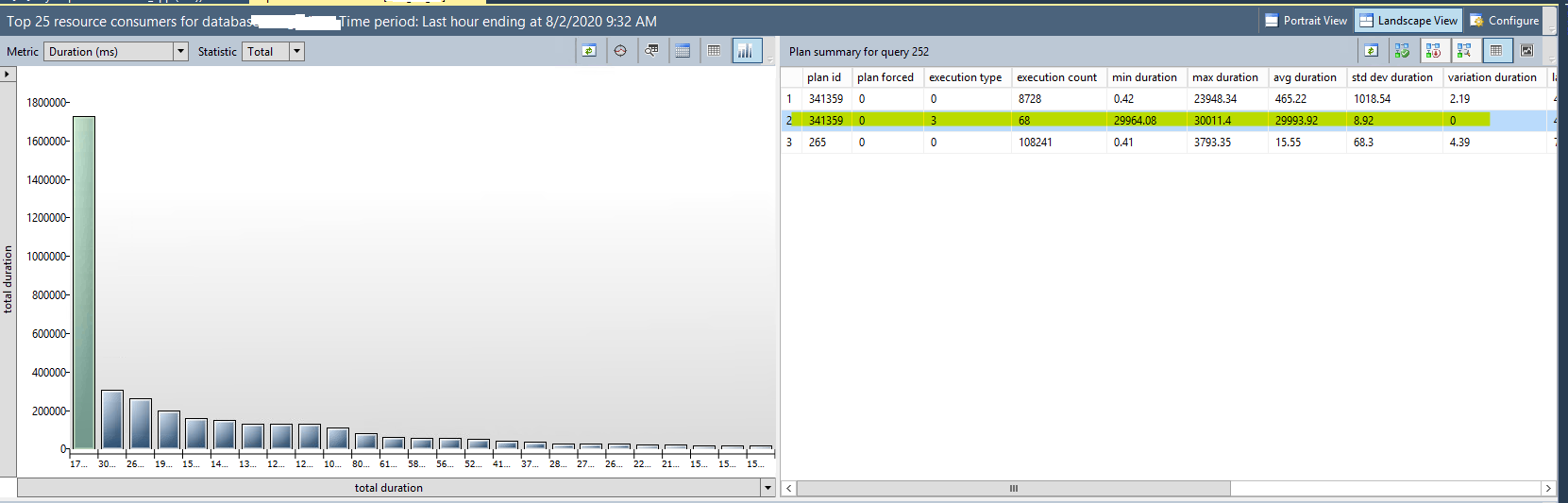

Query Store third graph

The graph that should our plan wasn’t working

Above shows how at the time the update stats was running (that particular column of the query story graphic is cut off) the query times jumped to 30 seconds.  So while overall updating the stats is a good thing, here it was definitely killing our process.

Above I mentioned that changing the compatibility level still had an impact here. What I didn’t show here was that I was also looking at a bunch of statistics histograms and could see how badly things had gotten in some cases. But this is an area where SQL Server 2016 makes a difference! It can do more in the background better to help keep statistics a bit more accurate (still not as good as a full update, but it can dramatically help.) This is a hug part I believe of why the first query addressed above improved AND stayed improved.

Loving Query Store

They say a picture is worth a 1000 words. Honestly, I probably could have figured out the above issues with running a bunch of queries, looking at some DMVs, statistics histograms and the like. But it would have taken longer. Note too you can query the query store. But, the ability to instantly look at a graph, see what’s taking the most time, or executing the most, or a variety of other parameters makes the graphical interface to Query store EXTREMELY valuable. I was able to instantly zero in on a couple of key queries and focus my energies there. By varying the timeframes I was looking at, I could try changes and see the impact within minutes. I could also look at the stored query plans and make judgments based on what they showed.

If you’re NOT using Query Store to debug performance issues, start doing it. To be honest, I haven’t used it much. I wouldn’t call myself an expert in it by any means. But, I was able to pull it up and almost instantly have insight into my client’s issues and was able to make actionable suggestions.

And to quote the product manager there after I fixed the first query simply by changing compatibility mode, “A good DBA is like having a good mechanic to work on your car.” That one made me smile.

Oh and I’ve been known to swap out the alternator on my old Subaru in under 10 minutes and have replaced the brakes a number of times. So if this DBA thing doesn’t work out, I guess I’ve got another career I can look into!

Final Note

Per my NDA, I obviously haven’t named my client. But also, simply out of respect, I haven’t named the third party tool. I don’t want folks thinking I’m trying to besmirch their name. Their product is a fine one and I’d recommend it if asked. But my client is one of their larger users and sometimes pushes it to the limits so we sometimes find some of the edge cases. So nothing here is meant to disparage the 3rd party tool in an way (though they should replace that image field since it really doesn’t need to be one!)





Trust but Verify

This is one of those posts where you’ll just have to trust me. Honestly.

I want to talk about indexes.

About a week ago, a friend on a chat system I use mentioned how one of their colleagues had mentioned, “oh, we don’t have to optimize the database, the server is fast enough” or words to those effect. All of us in the discussion blanched a bit. Yes, when I started in the business a 10GB database was considered large and because of the memory limit with 32-bit SQL, we were limited to 2GB (or 3GB if you took the right steps) of memory so it was literally impossible to keep a large database in memory. Of course now we routinely deal with databases 100s of GB in size with machines that can easily have .5TB of memory or more. This means except for writes, an entire database can easily be kept in memory.

But that said, optimization still matters. Last week I was debugging an ETL process that I’ve helped a client with. I’d love to show screen shots, but my NDA won’t allow me (hence my asking you to trust me). Ok, that’s partly a lie. I couldn’t provide too many details if I wanted to, but the bigger issue is, I’ve since closed the windows I that showed the scripts in questions and the results of my changes.

One of the last things each step in the ETL does is write back to the source table an updated Sales Force id. It’s actually a bit more complicated because what it really does is write to either a Success table or an Error table and depending on a factor or two, a trigger will then update the source table. I had previously debugged and improved the performance of the trigger. But something was still bothering me about the performance. I looked a bit deeper and one of the things that trigger does if there’s a success is make sure to remove the row from the Error table. This was taking longer than I suspected it should, so I dug into it and I noticed that the Error table had no index.

I can’t show the original queries I used, but I can show an example of the impact of adding a simple clustered index. (See, you can’t even trust me to say I won’t show any examples! You’d better read the entire post to verify what I’m really writing!)

Here’s an example query (with some changes to hide client specific data)

select * from ErrorTable where SF__External_Id__c='005A000022IouWqIAX'

It’s a very simple query (and simpler than the actual one I was dealing with) but is enough to show the value of a proper index.

Now, in my original query, the Query Tuning Advisor actually suggested an index on SF__External_ID__c. In the example above it didn’t. There’s a canard among many DBAs that the QTA is generally useless and often it is, though I think it’s gotten better. As a consultant, I can often come into a new client and can tell when someone has gone crazy with the QTA and adopted EVERY SINGLE suggestion. In other words, they trusted it, but they never verified it. Why is this a problem? Well at times the QTA can be overly aggressive in my experience, suggesting indices that really provide little benefit, or if you add an index in response to a select query that is run say once a day, but where there are 1000s of updates a day, you might actually slow down your updates (since now the update also has to update the index). And as mentioned above, sometimes it might fail to suggest an index. (I think in this case, it didn’t suggest one on my example because the size of the underlying table was far smaller than before).

So, I like to verify that the index I’ll add will make a difference. In cases like this, I often go old school and simply bracket my test queries

set statistics IO ON
set statistics Time ON
select * from ErrorTable where SF__External_Id__c='005A000022IouWqIAX'
set statistics IO OFF
set statistics Time OFF

And then I enable Actual Execution Plan.

The results I received without any sort of index are below. Some key numbers are highlighted in red.

SQL Server parse and compile time:
   CPU time = 0 ms, elapsed time = 0 ms.
SQL Server parse and compile time:
   CPU time = 47 ms, elapsed time = 63 ms.
SQL Server parse and compile time:
   CPU time = 0 ms, elapsed time = 0 ms.

(2 rows affected)
Table 'ErrorTable'. Scan count 1, logical reads 3570, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

(1 row affected)

SQL Server Execution Times:
   CPU time = 16 ms,  elapsed time = 15 ms.
SQL Server Execution Times:
   CPU time = 0 ms,  elapsed time = 0 ms.

You’ll notice the physical reads are 0. This is nice. This means everything is in memory.

In this case, because I’m familiar with how the ErrorTable is accessed I decided a clustered index on SF__External_Id__c would be ideal. (all my updates, inserts, deletes, and selects use that to access this table).

I added the index and my reran the query:

SQL Server parse and compile time:
   CPU time = 0 ms, elapsed time = 0 ms.
SQL Server parse and compile time:
   CPU time = 0 ms, elapsed time = 1 ms.
SQL Server parse and compile time:
   CPU time = 0 ms, elapsed time = 0 ms.

(2 rows affected)
Table 'ErrorTable'. Scan count 1, logical reads 3, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

(1 row affected)

SQL Server Execution Times:
   CPU time = 0 ms,  elapsed time = 0 ms.

SQL Server Execution Times:
   CPU time = 0 ms,  elapsed time = 0 ms.

Note the number of logical reads dropped by about a factor of 1000. My elapsed time dropped from 15 ms to 0 ms (or rather less than .05 ms so SQL Server rounded down).

If we look at the graphical query plan results we something similar:

First, without the index:

Trust_but_Verify_Query Table Scan

Table scan to find 2 rows

Trust_but_Verify_Query Table Seek

Table Seek to find 2 rows

That’s nice, I now know I’m doing a seek rather than a scan, but is that enough? I mean if the ErrorTable only has 2 rows, a seek is exactly the same as a scan!

So let’s dig deeper:

Trust_but_Verify_Query Table Scan Details

Query plan showing details for a scan

Trust_but_Verify_Query Table Seek Details

Query plan showing details for a seek

Here you can definitely see the dramatic improvement. Instead of reading in over 100,00 rows (at a bit over 2.5 KB per row, or over 270MB) we only need to read in 2 rows, for a total of just over 5 KB of data.

Now wonder it’s faster. In fact, in the ETL process where it was originally taking about 1 minute to process 1000 rows, my query with the index was now executing 3000 rows in under 10 seconds.

The above is a bit of a contrived example, but it’s based on actual performance tuning I did last week. And this isn’t meant to be a lesson in actual performance tuning, but more to show that if you make a chance (in this case adding an index) you can’t just trust it will work, but you should VERIFY that it has made a difference, and more importantly, that it makes a difference for your workload. I’ve seen GTA often make valid, but useless index suggestions because someone ran an uncommonly used query against it and assumed the recommendation was good. Or, they’ve made assumptions about the size of the table.

So never just trust an index will help, but actually VERIFY it will help.



“It’s a Jump to the left…

… and then a double-hop to the right.” Or something like that.

I’ve commented before on the fact that I’m a consultant. I enjoy it. People will ask me what I do, and it varies. At one client they refer to their VB app as “the database” and because they found an ad of mine on Google where I talked about database administration, they hired me. About 80% of the work I do for them is actually on the VB app or related, very little is actually what I’d consider traditional database work. But that’s ok, they’re a pleasure to work with and I enjoy the work. Another client I recently worked with, asked me to help them conduct an audit of their web based product and help them with some steps to make it more secure. I was more than happy to help.

And then there’s my largest, by far, client. I actually get to do a fair amount of work that most of my #sqlfamily would recognize as “database work”. But there, perhaps more than any other, I describe my duties as “DBA and other duties as assigned.”  So between the work at this client and all my other clients, I’m often jumping or stepping around stuff.

The Double-Hop

This time though I was asked to double-hop. What is that exactly? It’s an issue that has to do with how Windows can pass security credentials from one server to another. This article, while old, describes it well. This was essentially the situation my client was trying to solve: Users needed to use their Active Directory (AD) Credentials to log into the Reporting Server (RS_Server) and run a report that in turn accessed data on a separate database server (DB_Server), and thus, the double-hop. Now, from my point of view, this isn’t really database work, but since the reporting server talks to the database server it was dropped in my lap under “other duties as assigned.”

Now, honestly, this SHOULD be simple to solve. It wasn’t. One reason was in part because, like many companies, this client has a separate team that handles much of their infrastructure needs, such as AD requests. And they have to go through tickets. To be clear, I support this concept, in theory. In practice, it can often take 2-3 weeks for even simple requests to go through. This meant that my first attempt at solving the double-hop failed. Their IT department did exactly what I requested. Unfortunately there was a typo in my ticket. So it failed. So round two. And round two didn’t work. Nor did round three. At this point though it wasn’t due to typos or mistakes on my end.

I started reading every article I could. My great editor at Red-Gate, Kathi Kellenberger has one, and trust me I wasn’t too shy to ask at that point! But nothing was working. I even asked another DBA at the client (they actually head up a different group and is their lead DBA). She pointed me to one of her people saying, “talk to him, he solved it.” I did, and he hadn’t. His solution was the one we were trying to avoid (basically using a fixed user in the datasource).

Frustration Sets In

I was getting frustrated. Fortunately at this point I started to exploit a loophole in the ticketing process. Since the problem wasn’t being fixed, I was able to keep it open and ended up getting assigned someone from their IT group who was as interested in fixing this as I was. This meant rather than “open a ticket, wait 1-2 weeks, have ticket be closed as complete, test, find out it failed, rinse” we could now actually schedule Zoom sessions and make changes in real-time. AND…. nothing we tried worked.

At this point you’re probably saying, “Yeah, yeah, get to the point. Did you solve it?”  The answer is yes, but I wanted you to feel a bit of my pain first, and I needed to make this post long enough to make it worth posting.

A Solution!

Now, let me say, I wish I could write out an exact recipe card solution for you. For various reasons, I can’t. But bear with me.

Finally, we found an additional resource in the IT group who had solved this before. His first recommendation was yet again, the solutions I mentioned above. He saw they didn’t work, agreed we were trying the right thing. So he said, “well let’s try a solution known as “Resource-based Kerberos Constrained Delegation“. This didn’t work at first either.

But then he suggested that we turn on 128 and 256 bit encryption on the DB_Server SQL account. Bingo that worked. Mostly. More on that in a second.

So here’s the setup we ended up with.

  1. RS_Server – running reporting services under an account domain\RS_Server_Service
  2. DB_Server – running SQL Server under an account domain\DB_Server_Service
  3. Setup some SPNs
    1. MSSQLsvc/DB_Server domain\DB_Server_Service
    2. MSSQLsvc/DB_Server.domain.com domain\DB_Server_Service
    3. Note in this case you do not appear to need one on the RS_Server side.
  4. Run a Powershell script
    1. $FEIdentity1 = Get-ADUser -Identity domain\RS_Server_Service
    2. $BEIdentity = Get-ADUser -Identity domain\DB_Server_Service
    3. Set-ADuser $BEIdentity -PrincipalsAllowedToDelegateToAccount $FEIdentitity1
  5. At this point things should have worked, but they didn’t until we then enabled the encryption options:

    encryption options for Kerberos

    Kerberos Encryption

  6. Then on our test box, things magically worked! Ok, not quite magically, but things worked. We had a solution.

And I was even more ecstatic when later that day, I tested this on a second report server box we had and it too suddenly was working without any changes. And this was a box where we had NOT even setup an SPN for the original double-hop solution, so I was pretty confident that the Resource-based Kerberos Constrained Delegation was working. In addition, in the rsserver.config file, the only authentication enabled was NTLM.

The next step was to try this on a production server. In that case, I did have to reconfigure the service it was running under to use the domain account domain\RS_Server_Service.

And… my test failed.

I was at wit’s end. I couldn’t quite figure out what was different. I checked my service names, my SPNs, the rsserver.config file, and more. Nothing was working. I took a break and came back and had an idea. In the datasource I changed it from:

Data source=DB_Server;Initial Catalog=TestDB

to

Data source=DB_Server.domain.com;Initial Catalog=TestDB

Bingo, it worked! A little digging confirmed my suspicion. This client actually has multiple DNS domains and the ordering and like under the TCP/IP settings was different on this box from the other two boxes. And that made the difference.

Sure enough when I tried deploying to a fourth box, I had the same issue, but changing it to the Fully Qualified Domain Name (FQDN) solved my issue.

So, my take-aways for this week:

  •  Resource-based Kerberos Constrained Delegation may be a better solution at solving the Double-Hop solution than the solution generally proposed.
  • Once you’ve setup the “target” SQL Server service account and source Reporting Server Service accounts, additional reporting servers can be added to the mix without needing assistance from a domain admin.
  • It appears you still need an SPN (well multiple) for the SQL Server itself.
  • You need to run a PowerShell Script to setup the accounts. Note that if you run it again, it overwrites the old settings, so you need to add ALL of the source accounts in a single step.
  • Depending on your domains security setup, you may need to enable 128/256 bit Kerberos authentication.
  • DNS resolution may determine if you can use just the NetBIOS name or the FQDN in your data sources.
  • This solution will NOT work if you need to cross domains or have more complex setups, but in general, it can be simpler to setup and to maintain, especially if you have limited access to making changes to AD in the first place.
  • My reading indicates this only works on Windows 2012 and beyond. But you shouldn’t be running older versions of Windows in any case!

If I get the time and energy, I may setup a test environment in my home lab to further experiment with this and write up better demos, but for now, use this as you can. Hopefully it’ll save you some of the stress I experienced.

And that’s it from here, back to other duties as assigned.





Quiet Time and Errors

I wrote last week about finally taking apart our dryer to solve the loud thumping issue it had. The dryer noise had become an example of what is often called normalization of deviance. I’ve written about this before more than once. This is a very common occurrence and one I would argue is at times acceptable. If we reacted to every change in our lives, we’d be overwhelmed.

That said, like the dryer, some things shouldn’t be allowed to deviate too far from the norm and some things are more important than others. If I get a low gas warning, I can probably drive another 50 miles in my car. If I get an overheated engine warning, I probably shouldn’t try to drive another 50 miles. The trick is knowing that’s acceptable and what’s not.

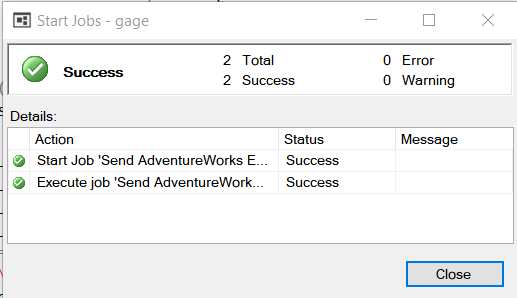

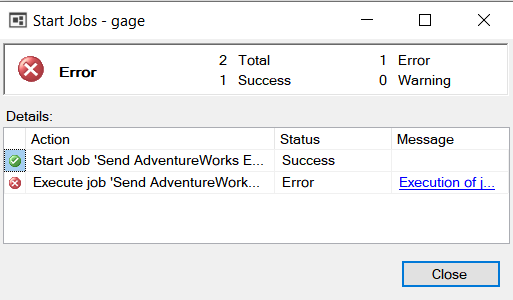

Yesterday I wrote about some scripting I had done. This was in response to an issue that came up at a customer site. Nightly a script runs to restore a database from one server to a second server. Every morning we’d get an email saying it was successful. But, there was a separate email about a separate task that was designed to run against that database that indicated a failure. And that particular failure was actually pretty innocuous. In theory.

You can see where I’m going here. Because we were trusting the email of the restore job over the email from the second job, we assumed the restore was fine. It wasn’t. The restore was failing every night but sending us an email indicating a success.

We had unwittingly accepted a deviance from the norm. Fortunately the production need for this database hadn’t started yet. But it will soon. This is what lead my drive to rewrite and redeploy the scripts on Friday and on Monday.

And here’s the kicker. With the new script, we discovered the restore had also been failing on a second server (for a completely different reason!)

Going back to our dryer here, it really is amazing how much we had come to expect the thunking sound and how much quieter it is. I’ve done nearly a half-dozen loads since I finally put in the new rollers and every time I push the start button I still cringe, waiting to hear the first thunk. I had lived with the sound so long I had internalized the sounds as normal. It’s going to take awhile to overcome that reaction.

And it’s going to take a few days or even weeks before I fully trust the restore scripts and don’t cringe a bit every morning when I open my email for that client and check for the status of overnight jobs.

But I’m happy now. I have a very quiet dryer and I have a better set of scripts and setup for deploying them. So the world is better. On to the next problems!

Getting My Hands Dirty…

… and my clothes cleaned. Or more importantly, dried.

Before I was a programmer I worked for my dad in construction over the summers of high school. It was good solid work. I enjoy working with my hands at times. For one thing, you see and feel the results of your accomplishments in a very tangible manner. For another, you generally can measure the impact of your effort.

After my dad died, I wrote about using a drill of his to work on the addition that was to become my office. I liked the heft and feel of it. I knew I was accomplishing something with it. Being a programmer, sometimes it’s hard to experience that. Currently for example I’m working on an ETL script using PowerShell to SFTP down a file, extract it to some tables and then feed it into Salesforce. For me, it’s just a bunch of data. Yeah, there’s some fun challenges; learning how to setup and deal with GPG and designing a robust and secure information because some of the data is sensitive. But, once the project is finished, it’ll run silently and other than an occasional email, I won’t think much about it. It won’t impact my day to day life in any way and I won’t be able to point to it and say, “See, THERE is something I did.”

But, my dryer on the other hand, now that’s different. For awhile now (say at least a year or two) whenever I’ve run a load it’s made a fearsome rumbling sound. It’s been annoying, but we’ve managed to live with it up until 6 or 7 weeks ago. Generally I’d do most of the laundry on Sundays and if there was a load or two left, on Monday while everyone else was out of the house or at school. But obviously things changed. My wife’s office is in the room next to the laundry room. Whereas for me the rumbling was faint and simply background noise, for her it was quite noticeable.  I tried to work the loads around her work schedule, especially since she’s on so many conference calls for her job, but it was getting less and less practical.

It was finally time for me to do something about it. Now, had I been smart, I’d have started the project on a Monday. But, I’m not always that smart. So, Saturday came around and I disassembled the dryer.

I was fairly confident I knew what the problem was. I assumed that either something had wrapped around one of the rollers for the drum, or a bearing in a roller had seized. If it was the former, the fix would be trivial and I’d have the whole thing back together before dinner. If it was the latter, I figured a shot of silicone or other lubricant and I could at least get a few more weeks out of it while I ordered the parts. And since the tight screws were now loosened and I knew how to take it apart, the final fix would go quickly.

Well, as they say, you know what happens when one assumes. I was wrong about the first guess, it was not something as simple as something wrapped around the roller. And I was even more wrong about it being a seized or flattened bearing. See for that assumption to be valid the bearing assembly inside the wheel has to actually exist.

20200502_162747

Bearing Assembly? What Bearing Assembly?

It’s a bit hard to make out, but inside the blue part of the wheel above, and behind the plastic triangle, there is supposed to be a nice little bearing assembly.  There is none.

20200502_163501

Better view of the roller

You can see the wear on the inner hub.  This is what in the trade is called “less than optimal.”

More seriously though, it unfortunately meant that this was not going to be a quick fix. I had been planning on ordering the parts, but this made it a bit more of a rush. The dryer contains four of these rollers and as such I ordered a four pack, since generally my assumption on items like this is is that if one has worn, all four are worn. Now, none of the other three have shown nearly the damage, but figure, I’m in there, I might as well make it right.

What’s most interesting to me, is that there’s literally NO sign of the roller assembly in the dryer. However it got destroyed, it was pretty cataclysmic.

I also took the time to clean out the rest of the interior space and correctly deduced that the moisture sensor was covered with lint. Now that I know where it is, I can keep that clean in the future.

In any case, sometime later this week, I’ll get my package, swap out the rollers and reassemble the dryer and start doing laundry again. Quietly.

But, unlike the ETL I’m writing above, this change will have a direct noticeable impact on my life I’ll be aware of every time I do a load of clothes. I like that.

This week’s takeaway? I do enjoy my job and the challenges that come with it, but there’s something to be said for doing work you can touch and feel and experience the tangible impact.

20200505_090057

My best sourdough yet!

And perhaps I shouldn’t be posting pictures of homemade bread after talking about dirty hands. Don’t worry, I washed my hands!

An Ounce of Prevention?

There’s an old saying in medicine, “when you hear hoof beats, think horses, not zebras.”  Contrary to what one might think after watching House the truth is, when you get presented a set of symptoms, you start with the most likely, well because it is most likely! But as House illustrates, sometimes it can be the unlikely.

In First Aid, especially wilderness or backcountry medicine, there’s an acronym that is often used called SAMPLE. This is a mnemonic to help rescuers remember what data to gather:

  • S – Signs/Symptoms – What do you see, observe? (i.e. what’s going on).
  • A – Allergies – Perhaps the problem is an allergic reaction, or they might be allergic to whatever drug you want to give them.
  • M – Medicines – What medications are they on? Perhaps they’re diabetic and haven’t taken their insulin, or they’re on an anti-seizure medicine and need some.
  • – Past, pertinent medical history. You don’t care they broke their ankle when they were 5. But perhaps they just underwent surgery a few weeks ago? Or perhaps they have a history of dislocating their shoulder.
  • L – Last oral intake. Have they eaten or drunk anything recently. This will drive your decision tree in a number of ways.
  • E – Events leading up to the injury.  Were they climbing to the top of the cliff and fell, or did they simply collapse at the bottom? The former may suggest you look for a possible spinal injury, the latter probably indicates something else.

I’m reminded of this because of how I spent my Presidents’ Day.  I woke up and checked a few emails and noticed that two I were expecting from a client’s servers never arrived. I logged in to see what was going on.  It turns out there was nothing going on. No, not as in, “nothing wrong going on” but more as in “nothing at all was happening, the databases weren’t operating right.”  The alert system could connect to the database server, so no alerts had been sent, but actually accessing several of the databases, including the master resulted in errors.

Master.mdf corruption

Not an error you want to wake up to!

And what was worse, was the DR server was exhibiting similar symptoms!

So modifying SAMPLE a bit:

  • S – Signs/Symptoms – Well, databases are throwing corruption errors on two servers.  This was extended to the ERRORLOG files on both servers.
  • A – Allergies – Well, servers don’t have allergies, but how about known bugs? That’s close enough.  Nope, nothing that seems to apply here.
  • M – Medicines – I’ll call this antivirus software and <redacted>. (For client privacy reasons I can’t specify the other piece of software I want to specify, but I’ll come back to it.)
  • – Past, pertinent medical history.  Nothing, these servers had been running great up until now. One has been in production for over 2 years, the other, up for about 2 months, being brought up as a DR box for the first.
  • L – Last oral intake. Let’s make this last data intake. Due to forensics, we determined the corruption on both servers occurred around 3:00 AM EST.  Checking our logs, jobs, and other processes, there’s nothing special about the data the primary server took in at this time. If anything, disk I/O was lower than average.  And, fortunately, we can easily recreate any data that was sent to the server after the failure.
  • E – Events leading up to the injury. This is where things get interesting.
    • There were some zero-day patches applied to both servers over the weekend.
    • On Saturday, I had finally setup log-shipping between the two servers

So, we’ve got three possibilities, well four really.

  1. The zero day patches caused an issue about 48 hours later.  Possible, but unlikely, given the client has about 1600 servers that were also patched and have not had issues.
  2. Log-shipping somehow caused problems.  But again, the new log-shipping setup had run for about 36 hours without issue. And, best we can tell, the corruption occurred on the secondary BEFORE the primary. And log-shipping doesn’t apply to the Master database or the ERRORLOG file.
  3. Some unknown interaction.  This I think is the most likely and is where the <redacted> from the M above comes into play.
  4. Pure Random, and it’ll never happen again. I hate this option because it just leaves me awake at night.  This I added only for completeness.

Without going into detail, our current theory is that some weird interaction between <redacted> and log-shipping is our cause. Of course the vendor of <redacted> is going to deny this (and has) but it’s the only combination of factors that seems to explain everything. (I’ve left out a number of additional details that also helped us get to this conclusion).

So for now, we’ve disabled log-shipping and are going to make some changes to the environment before we try log-shipping again.

Normally I think horses, but we might have a herd of zebras on this one. And ironically, setting up for DR, may have actually caused a Sev 1 outage. So the ounce of prevention here may not have been worth it!

And who said my Wilderness First Aid wouldn’t come in handy?
